Module 1: The DOM

HTML and the DOM

Static web pages with HTML and CSS might work fine for some scenarios. But now we are going to start adding more functionality to our applications, by building dynamic web pages!

One of the first steps in building vibrant, dynamic web pages and applications is learning about the Document Object Model, or DOM for short. The DOM is an Object (with methods and properties) exposed by the browser to the application, allowing your code to change the page. DOM manipulation is at the core of every framework, and before we start using frameworks, we need to understand the DOM.

A large part of your dynamic web page will rely on JavaScript code running in the browser, monitoring interactions from users, making calculations, to ultimately change elements and styles on the page. To accomplish that, the code will interact with the DOM to monitor events and update the page. The initial HTML and CSS files will act as a placeholder for the startup page, defining elements and styles, which can be selected and modified by the JavaScript code.

The DOM is a standard embraced by the Industry, enabling applications to behave dynamically and consistently, regardless of the browser being used. By accessing every single piece of the webpage, the code running in the browser can arbitrarily change anything in the page, at any time! In theory, the DOM is language-agnostic, but we will be working with JavaScript throughout the rest of this Sprint.

This is a high-level representation of the browser, which will become more clear as we move on. Notice how each everything you've learned to this point is represented in the DOM:

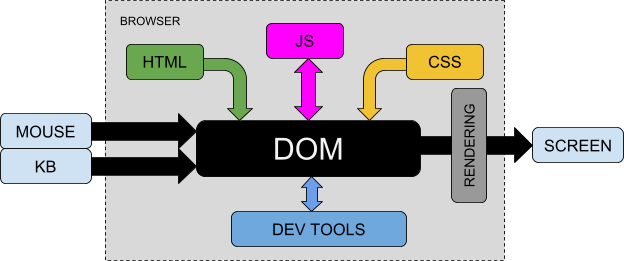

The image shows an internal diagram of the browser, where HTML, JavaScript and CSS files collectively define the DOM, which is rendered to the screen. The DOM is also connected to external sources such as mouse and keyboard, to be able to react to user interactions and possibly update the screen. Finally, the DOM is also connected to the browser's development tools, which can be used to inspect and modify the local representation of the DOM on the user's screen.

To access and modify elements in the page, the JavaScript code will read and write properties, as well as execute methods of the DOM object. Under the hood, the browser will receive updates and render a new page. In practice, the DOM is acting as an interface between the application (JS code) and the user's screen / mouse / keyboard.

Developers can also use the browser's Developer Tools to quickly interact with the DOM, making it easy to debug and experiment.

In this Core Competency, you will learn how the DOM is structured and how to leverage the DOM to turn your static webpage into a dynamic webpage.

So let's get started!

Understanding the DOM

When a web page is loaded into a browser, the browser first looks for the HTML file to start building the page in memory. The HTML file may have external references or internal code for CSS, JavaScript etc., and all this collection of instructions are used to build a model for the page's look and functionality. In the end, this model - or representation - will contain every single piece of the rendered page: sections, tags, graphics, text, and their corresponding styles and event listeners.

This model, as we know, is an object called DOM (Document Object Model). Notice that the DOM is not the actual code that renders the page, but instead, an interface (Application Programming Interface, or API) to the browser's internal rendering engine, which can be accessed programmatically.

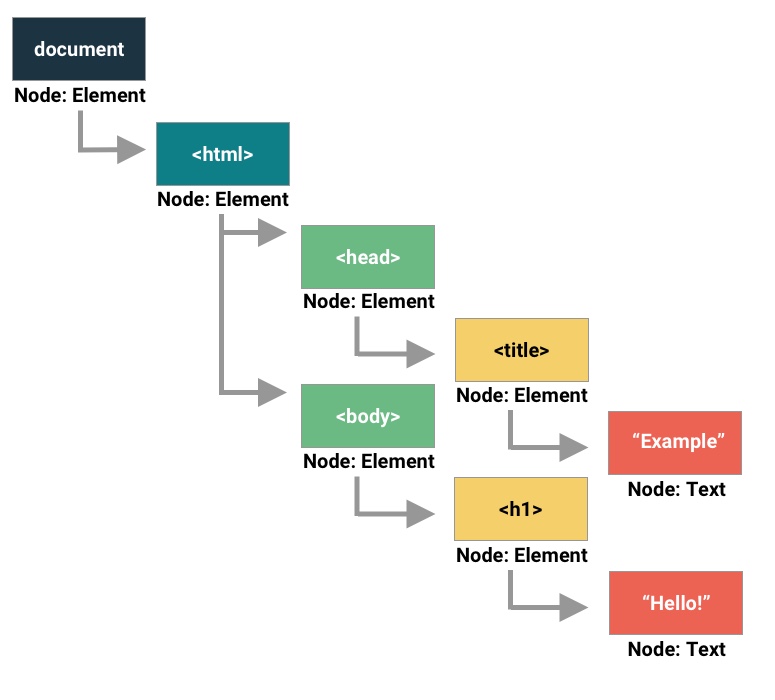

The DOM is built as a data structure known as a 'Tree' because parent elements have nested children elements (or leaves). As with physical trees, we can follow tree branches to get to the exact leaf (or leaves) that we want to access. Each branch of our DOM tree can be its own tree. It is important to remember this as we move through this lesson.

When the webpage is loaded and the DOM is built, developers get access to it in the form of the global Javascript object called document. document contains the entire hierarchy of the page, each element (or DOM node), and dozens of built in methods and properties. We can use these methods and properties to manipulate what we see on the screen. The 'document' object tree is intimately linked to the actual HTML structure of the page. If you update the DOM, you'll update the page.

<!DOCTYPE html>
<html lang="en">
 <head>
   <title>Kolors Palette Selector</title>
   <style>
     .container {
       display: flex;
       justify-content: center;
     }
     .rectangle {
       border: 1px solid black;
       margin: 2px;
       width: 10vw;
       height: 50vh;
       text-align: center;
       padding-top: 10px;
       font-weight: 700;
       color: white;
       text-shadow: 1px 1px black;
     }
   </style>
 </head>
 <body>
   <h1>Kolors Palette Selector</h1>
   <button type="button" id="palettebtn">Change Palette</button>
   <div class="container">
     <div class="rectangle"></div>
     <div class="rectangle"></div>
     <div class="rectangle"></div>
     <div class="rectangle"></div>
     <div class="rectangle"></div>
   </div>
 </body>
</html>

Inspecting the DOM with Chrome DevTools

Now that we understand the concept of DOM, let's investigate it a bit further by visiting a live website and updating the DOM manually. Follow these steps in order:

You now have experienced editing the DOM without writing any code, just by using the inspector tool. Next, you will briefly interact with DOM programmatically, using the browser's console:

> document

How to Build It

Let's walk through how to build and test this color palette application using Chrome's developer tools:

1. First, load the page in Chrome to see the initial layout with the title and five empty rectangles
2. Open Chrome DevTools (F12 or right-click > Inspect)
3. In the console tab, type document to examine the DOM tree structure
4. Notice how the document object shows all HTML elements in a hierarchical tree matching your code
5. Hover over elements in the tree to highlight them in the page

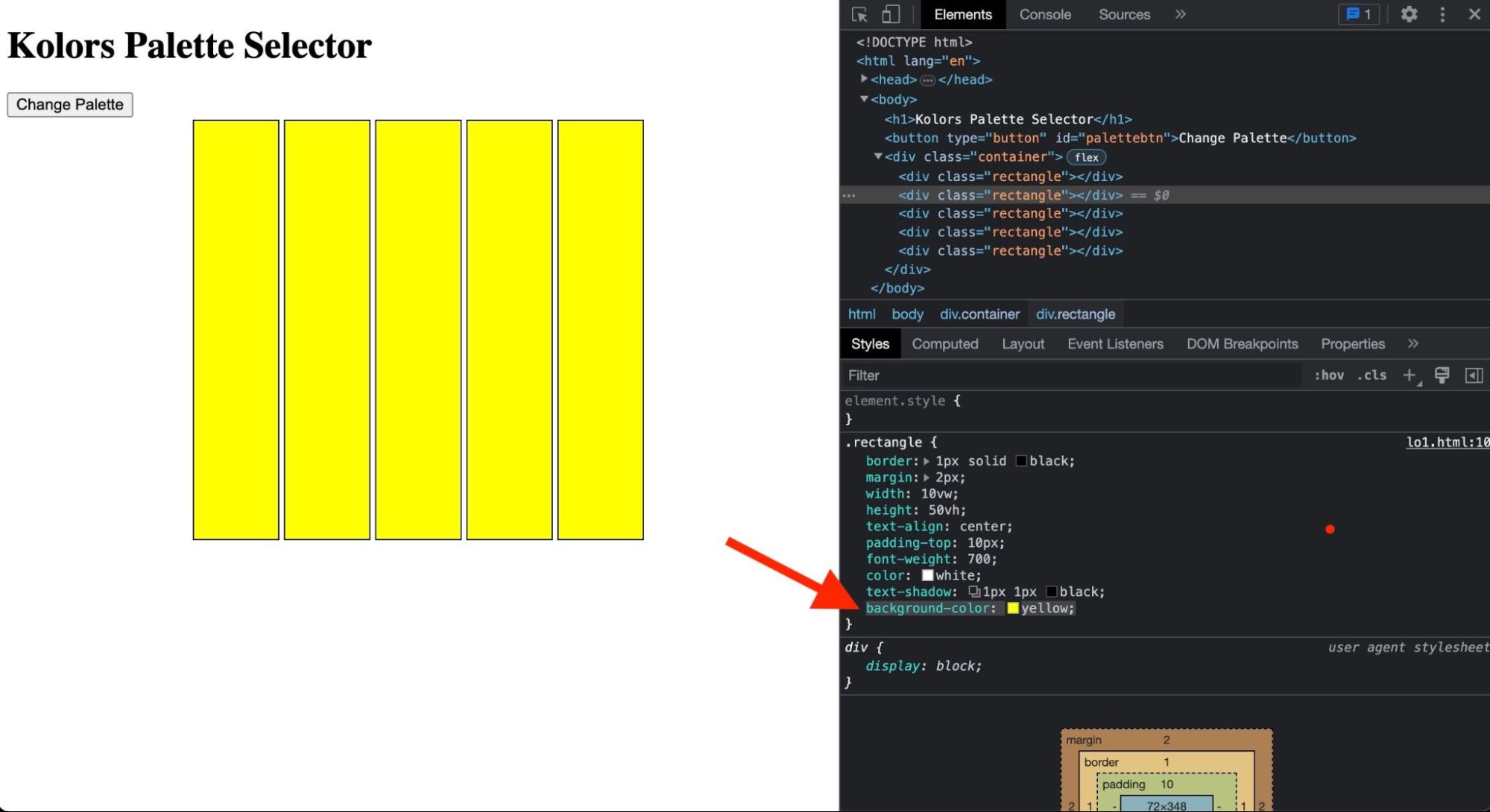

6. Right-click one of the rectangle divs and select "Inspect"
7. In the Styles tab, find the .rectangle class
8. Add background-color: yellow; to test coloring

This testing process reveals important implementation details:

• The document object provides programmatic access to all page elements
• Each rectangle div can be individually selected and styled
• The background-color property will be key for setting palette colors
• Changes made in DevTools are temporary and reset on page reload

This exploration through DevTools helps validate the DOM manipulation approach needed for the final implementation - selecting individual rectangle elements and updating their background colors programmatically rather than modifying the CSS class directly.

Inspecting the global document object

The window object refers to the actual window (or tab) where the JavaScript code is running.

Some may argue that the window object is not really part of the DOM, but a separate object model exposed by the browser. In our case, it really doesn't matter, since they are all global objects, with similar APIs, which can be accessed by the JavaScript code to change the page.

A window object always contains a document object (the tree structure of the contents of the page), and also properties and methods related to the actual window (height, width, browsing history, browser version, open URL, show alerts, enter fullscreen mode, resize etc.)

Once again, open the console in Chrome (F12 on Windows or command + option + i on Mac), enter window and expand its contents. You will notice the object contains literally dozens of properties and methods (which are followed by the 'f' symbol), and possibly some particular global variables defined by the current page's script.

Let's try some of them!

The window object has some interesting methods for dialogs. Type in the console to see what happens:

> window.alert("You have been hacked!");

This will display a simple pop-up message for the user.

> window.prompt("Enter your super-secret password to continue...");

This will stop the execution of the script to gather input from the user. The input is returned as a string. If the user clicks cancel, null is returned.

The location object inside the window object has properties and methods to get, for instance, the current url and the originating site. Let's do a full page reload from the server:

> window.location.reload(true);

The history property can be used to access information about any previously visited pages in the current browser session. Let's first verify if we have anything in our history:

> window.history.length;

And then go back to the previous page:

> window.history.back();

It's often desired to open a new window / site from within your script. Let's assign this new window to a const so we can access it later:

> const newsite = window.open("https://google.com");

Let's access the screen object to check some dimensions:

> window.screen.height;

for the total height of the current window, and:

> window.screen.availHeight;

for the actual page area, excluding menus.

Finally, just for fun, let's access the document object inside the window to make a radical page update:

> window.document.write("What's happened!?");

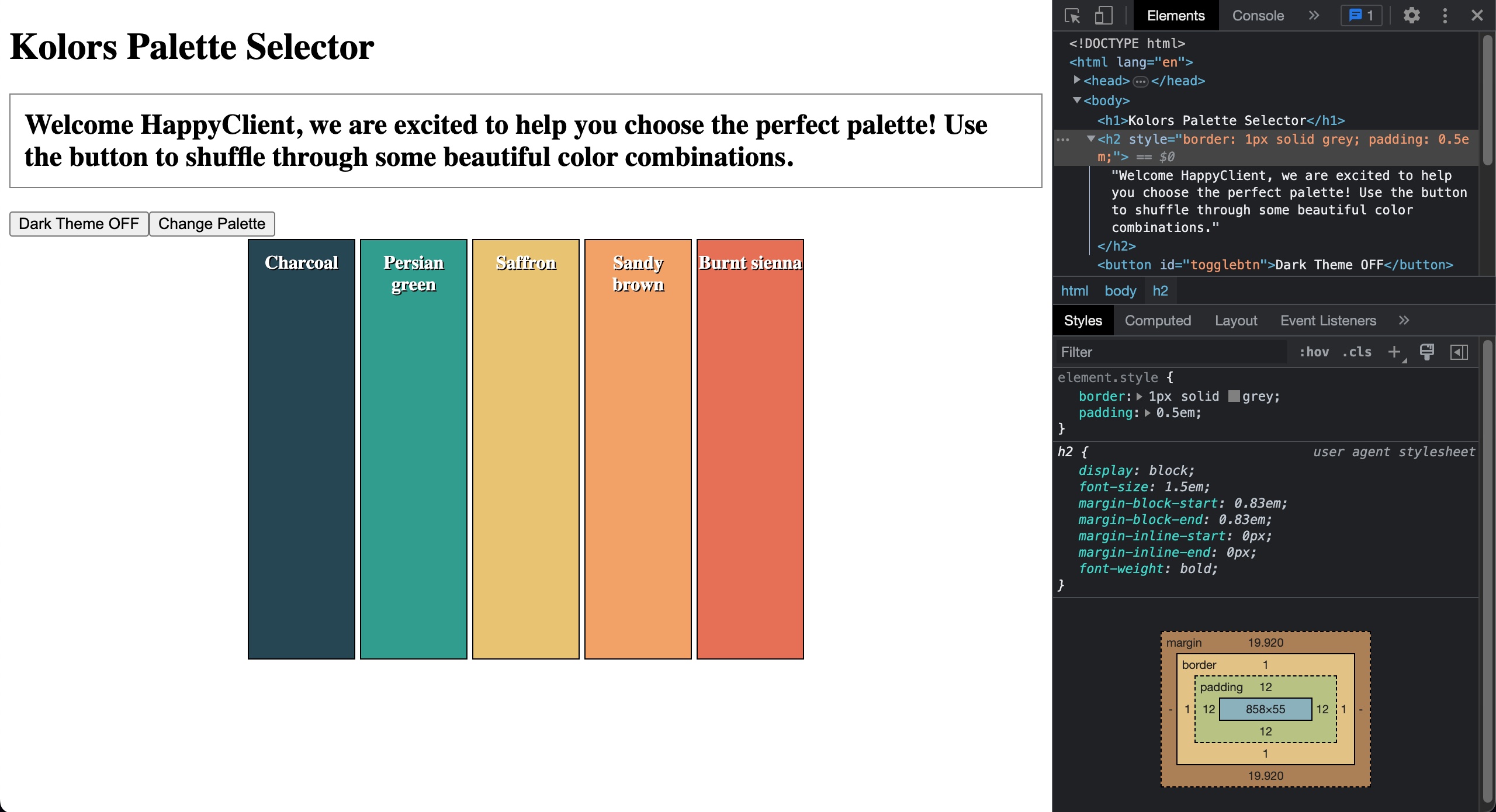

At this point, you are probably convinced that your application can do pretty much anything to create very interesting and dynamic pages! You can rely on the browser's Developer Tools to try any code or update any page element manually.

<script>
const clientName = window.prompt("Welcome to Kolors! Please enter your company's name:");
</script>

Inspecting a DOM node

Let's dig a little deeper and check some properties and methods of one of the document nodes. The body is probably a good choice since it will often contain the bulk of the page content.

document.body returns a reference to the body node, allowing us to set or read the document's element. The node returned is an object inside the document object, with several properties and methods. Let's check some properties!

Navigate to https://google.com

Its body should have no background color set. You should get an empty string by typing in the console:

> document.body.style.backgroundColor;

Let's make the page really ugly:

> document.body.style.backgroundColor = "Yellow";

Argh! Change it back:

> document.body.style.backgroundColor = "";

Let's log the complete HTML inside the body:

> document.body.innerHTML;

Pretty much every single DOM node will have the innerHTML property. Who could imagine such a large content for a simple page?

The returned content is hard to read in the console, being a serialized string with no coloring or indentation. But it should be easy to work with inside a well designed script, which could remove the tags, replace text etc. If you go through the list of properties and methods by typing:

> document.body.innerHTML.
// notice the dot in the end, instead of the semicolon, making a list of properties and methods appear in the console

You will realize how you could easily manipulate the innerHTML text with methods such as slice, split, trim etc.

What are the child nodes inside the body?

> document.body.childNodes;

And you get a nice visualization of the NodeList "array" (more on this later), including any classes or IDs associated with the elements. And:

> document.body.parentNode;

Should return the complete section, including the body itself. This next code:

> document.body.nodeType;

Should return 1, meaning the body is an ELEMENT. Other common node types are 2=attribute, 3=text, 9=document.

This command below should return 9, right?

> document.body.parentNode.parentNode.nodeType;

Finally, notice there are some global variables inside the document tree, like those containing closure_uid in the Google homepage. These variables (or constants) have been declared somewhere in the page script and are available to any code that you add to the scripts.

> document.body;

Conclusion

This was a deep one! You have learned what the DOM is, how it relates to the HTML page and the browser, and how you can access the DOM using different approaches to change the page!

We don't need to complicate it. The DOM is just a bridge for our script to read from and write to the browser. If you have a solid HTML/CSS file to begin with, you won't ever have to worry about editing HTML or CSS in your application. Everything will be done through JavaScript, in real time, for a very dynamic and interactive web page.

Selecting DOM Elements

At this point, you should have a good understanding of the Document Object Model. You have interacted with the DOM using the console, and other developer tools to manipulate elements, change styles and text, read and write properties, and even run methods.

In this Core Competency, you will learn how to select elements of the live page to manipulate them with code. Selecting elements (or nodes) is one of the first steps in every DOM manipulation application.

There are many ways of selecting elements. In it's simplest form, you can select the body and the head by asking explicitly for them (document.body, document.head). However, things may get impractical when you need to select specific elements down the tree. Thankfully, the 'document' object has several built-in methods for accessing the exact element(s) you want. Let's dive in!

Selecting nodes by ID

The original JavaScript methods for selecting elements from the DOM start with 'getElement'. These methods take a single string as the only argument, being the desired element's id, tag, or class.

Let's start with getElementById.

This method will take a single string as an argument containing the id of an element, search through the DOM, and return the matching element (which should be unique).

document.getElementById('idName');

The returned value is an object representing the node. Most of the time, you would assign the returned node to a variable to be able to manipulate the node later in the code.

<!DOCTYPE html>
<html lang="en">
<!-- ... -->
<body>
   <h1>Kolors Palette Selector</h1>
   <button type="button" id="palettebtn">Change Palette</button>
   <div class="container">
      <div class="rectangle"></div>
      <div class="rectangle"></div>
      <div class="rectangle"></div>
      <div class="rectangle"></div>
      <div class="rectangle"></div>
   </div>
</body>
</html>

const palleteBtn = document.getElementById('#palettebtn');

Selecting collections by class and tag

The getElementsByTagName method will also take a single string as an argument containing the tag name of the elements you want to select. It will return an array-like object called HTMLCollection containing all the elements in the document that match the tag name supplied, regardless of their actual location in the tree.

We will discuss what an HTMLCollection is after we talk about the rest of our selector methods. To get all the nodes in the document, you would write:

document.getElementsByTagName('p');

The 'array-like' return value is a collection of objects, each one referencing a p node.

The getElementsByClassName method will take a single string as an argument containing the class of the elements you want to select. It will return an HTMLCollection containing all of the elements that hold the given class.

The following code:

document.getElementsByClassName('big');

Will return a collection with all the elements pertaining to the 'big' class, regardless of their actual type/tag (p, h1 etc.).

<!DOCTYPE html>
<html lang="en">
<!-- etc -->
  <body>
    <h1>Kolors Palette Selector</h1>
    <button type="button" id="palettebtn">Change Palette</button>
    <div class="container">
       <div class="rectangle"></div>
       <div class="rectangle"></div>
       <div class="rectangle"></div>
       <div class="rectangle"></div>
       <div class="rectangle"></div>
    </div>
  </body>
</html>

//This will get the rectangles and also the first div (container) node.
const colorBars = document.getElementsByTagName('div');

//This will return the exact 5 rectangles (nodes).
const colorBars = document.getElementsByClassName('rectangle');

Selecting nodes with .querySelector()

Over time, new node selection methods have been incorporated into JavaScript, particularly after the new CSS selectors were defined and adopted. These methods start with querySelector and allow us to select element(s) based on CSS style selectors (remember . is for classes and # is for ids). Each method takes a string containing the selector(s) and returns the element(s).

The querySelector method will search for and return the first element that matches the value passed into the method. Remember that the most significant change from the older DOM selection methods is that we must pass the proper CSS selector into the argument. If we passed custom-style and not .custom-style we would error out because the dot needs to be added to specify the custom-styleclass.

To return the first node pertaining to the custom-style class, you would use:

document.querySelector('.custom-style');

Don't forget the string quotes! And to get the node with the custom-id ID:

document.querySelector('#custom-id');

// Either one to return the button node
document.querySelector('#palettebtn');
document.querySelector('button');

// To get the div.container node
document.querySelector('.container');

// To get the first div with .container class inside the body
document.querySelector('body div .container');

Selecting node lists with .querySelectorAll()

The last method, querySelectorAll, will search for and return all elements matching the query string. This method returns the nodes in an array-like object called NodeList.

A NodeList is also an 'array-like' object similar to an HTMLCollection, but exposes the forEach() method which can be very useful to iterate over the nodes.

If you wanted to select all elements with the .special class attribute, but only those inside the body, you would write:

document.querySelectorAll('body .special');

And get a NodeList containing one or more objects, each referencing a special class node inside the body.

const colorBars = document.querySelectorAll('.rectangle');

> const colorBars = document.querySelectorAll('.rectangle');
> colorBars;
NodeList(4)
  0: div.rectangle
  1: div.rectangle
  2: div.rectangle
  3: div.rectangle
  4: div.rectangle
  length: 5
  __proto__: NodeList

Iterating over a node list with .forEach()

Before iterating over a NodeList object using forEach(), let's learn about some differences between NodeList, HTMLCollection, and Array.

When we use getElementsByClassName() or querySelectorAll(), we get back either an HTMLCollection or a NodeList, respectively. We refer to these as 'array-like objects.' They both have numerical zero-based indices and a length property, but that is all they share with an Array. No .reduce(), .map(), or any other array method exists on these objects.

Consider this HTML:

<header>
<h1 class="main-header">Selectors!</h1>
<nav class="main-nav">
  <a href="#" class="nav-item">Home</a>
  <a href="#" class="nav-item">About</a>
  <a href="#" class="nav-item">Blog</a>
  <a href="#" class="nav-item">Contact</a>
</nav>
</header>

If you select a single node and log it:

> const mySelection = document.querySelector("a")
You get:
<a href='#' class='nav-item'>Home</a>

This is the representation of the node in the console, but remember that it's an object with properties and methods. You will learn about some of the most common properties and methods of document nodes later. For now, you can log the length of the text content of the node with the following:

> mySelection.innerText.length;
4

Now if you select multiple nodes and log the result:

> const multipleSelections = document.querySelectorAll('a');
> multipleSelections;

As expected, the result is quite different from the first case:

NodeList(4)
  0: a.nav-item
  1: a.nav-item
  2: a.nav-item
  3: a.nav-item
  length: 4
  __proto__: NodeList

Again, this is a graphical representation of a NodeList object. Each one of the nodes in the list is exactly the same type of node that was returned in the first case, when selecting a single element. You can verify that with:

> multipleSelections[2];
<a href='#' class='nav-item'>Blog</a>

Accessing elements in this way is extremely powerful and will allow you to be creative if an HTML solution is not possible or practical. For example, imagine you didn't have a class or ID to hook into; you could use the NodeList index to get the job done!

> const nodeArray = Array.from(multipleSelections);

In many cases, though, the forEach() available in a NodeList should be enough. This is an example to create a loop over all nodes and log their text content:

multipleSelections.forEach(function(currentNode, currentIndex){
console.log('This is node index:', currentIndex);
console.log(currentNode.innerText);
};

const colorBars = document.querySelectorAll('.rectangle');

const changePalette = () => {
colorBars.forEach((rectangleElement, rectangleIndex) => {
    // future manipulation code
});
};

Conclusion

Selecting nodes (elements, text, etc.) from the DOM is critical to every dynamic application. The document object offers several methods to precisely select what you need.

By assigning selections to variables, you will have the nodes available to your application throughout the life of the page.

The querySelector methods benefit from the CSS selectors format and return an iterable NodeList when selecting multiple nodes.

Manipulating DOM Elements

While selecting nodes is a necessary step before actually doing something with them, the core of the application is really how and when you manipulate the nodes by changing their styles, text, or attaching event listeners.

Every node selected is an object in itself, exposing properties and methods relevant to the node type. After we have captured our node (e.g. const element = document.querySelector('#idName');) we can access that element and assign values to its properties. Once again, there are dozens of properties and methods given to us on each element. You will read about many of the commonly used properties and methods here.

Setting text with .textContent()

When we want to update the text using the DOM, the go-to property is called textContent. We can both read and write text inside of elements using textContent. The textContent property essentially represents whatever text is between the open and closing tags of an HTML element.

If the HTML element has nested (children) elements, the text from all children will also be returned, excluding their HTML tags.

You can use the assignment operator = to reset the text of an element. Keep in mind that setting this property on a node removes all of its children and replaces them with the new single text node.

Consider the HTML below:

<h2 class="second-heading">I am the DOM</h2>

You can update the text in this h2 element. First, set up a reference to our element on the DOM:

> const secondHeading = document.querySelector('.second-heading');

You are now prepared to update the content of our heading. You can update the content to say "DOM updated!"

> secondHeading.textContent = "DOM updated!";
> secondHeading;
<h2 class="second-heading">DOM updated!</h2>

Notice that you are first getting the text node of the element and then setting a new value!

const palette = [
  "Charcoal",
  "264653",
  "Persian green",
  "2a9d8f",
  "Saffron",
  "e9c46a",
  "Sandy brown",
  "f4a261",
  "Burnt sienna",
  "e76f51",
];

const palleteBtn = document.getElementById('palettebtn');
const colorBars = document.querySelectorAll('.rectangle');

const changePalette = () => {
  colorBars.forEach((bar, index) => {
    bar.textContent = palette[index*2];
    //future code
  });
};

Setting attributes with .setAttribute()

HTML elements may have several attributes, either hard coded or through a CSS stylesheet. Updating HTML attributes is vital to DOM manipulation.

Consider the HTML tag below:

<img class="custom-img" src="" alt="Kitty image" />

Updating the DOM usually happens in two steps.

Step 1: Select the element:

> const catImage = document.querySelector('.custom-img');

Step 2: Use the desired attribute property to update the element

> catImage.alt = 'Just a cute cat!';

You can even chain the two steps together like this:

> const catImage = document.querySelector('.custom-img').alt = 'Just a cute cat!';

Now let's update the (empty) src attribute with this URL:

https://images.pexels.com/photos/20787/pexels-photo.jpg?auto=compress&cs=tinysrgb&h=350

Instead of accessing the property with the "dot" notation (e.g. element.src) and setting the value with the equal sign (=), you could also use the .setAttribute() method like this:

catImage.setAttribute('src', 'https://images.pexels.com/photos/20787/pexels-photo.jpg?auto=compress&cs=tinysrgb&h=350');

.setAttribute() takes two arguments, the attribute to set, and the value to be assigned to that attribute. By using a method instead of the property, you would have more flexibility in some scenarios. For instance, you could create a reusable function that would take the the element, attribute and value:

function flexAttribute(targetElement, attr, val) {
   tagetElement.setAttribute(attr, val);
}

const changePalette = () => {
  colorBars.forEach((bar, index) => {
    bar.textContent = palette[index*2];
    bar.title = palette[index*2] + "- #" + palette[index*2 + 1];
    //future code
  });
};

Setting inline styles with .style()

Every element contains a style object which can be accessed through the .style property. The style object contains every available style as a key and a value.

When using .style, you can read any existing HTML inline style set on the element, or add new ones.

Using this HTML as reference:

<header>
  <h1 class="main-header">Dom Manipulation</h1>
  <nav class="main-nav">
    <a href="#" class="nav-item">Home</a>
    <a href="#" class="nav-item">About</a>
    <a href="#" class="nav-item">Blog</a>
    <a href="#" class="nav-item">Contact</a>
  </nav>
</header>

You can select a node and change its style:

> const mainHeader = document.querySelector('.main-header');
> mainHeader;
<h1 class="main-header">Dom Manipulation</h1>
> mainHeader.style.color;
''
> mainHeader.style.color = 'blue';
'blue'

See this other example using forEach():

const navNode = document.querySelector('.main-vav');
navNode.forEach((node, idx) => {
  node.style.textTransform = "uppercase";
  console.log("The text from element",idx,"in the NodeList has changed to:",val.innerText);
});

When using JavaScript to update CSS style properties, we need to be careful to remember that JavaScript does not accept dashes (-) as a valid naming value! Therefore, whenever a CSS property contains a dash (such as background-color), we must use camel casing in JavaScript.

Example in CSS:

.some-class {
  background-color: gray;
}

The JavaScript version would look like this:

const someClass = document.querySelector('.some-class');
someClass.style.backgroundColor = "gray";

const changePalette = () => {
  colorBars.forEach((bar, index) => {
    bar.textContent = palette[index*2];
    bar.title = palette[index*2] + "- #" + palette[index*2 + 1];
    bar.style.backgroundColor = "#" + palette[index*2 + 1];
  });
};

Manipulating classes and IDs with .className, .classList and .id

As the names suggest, you can use .className and .id properties to read and write the class and id attributes of any node.

.className accesses or assigns a string containing all of the classes on the element. While .id accesses or assigns a string containing the id of the element.

Setting these properties will override declarations in the CSS stylesheet. If you need an element to be part of multiple classes, make sure to include all of them in the assigned string!

Access the className and id properties of the mainHeader node in the console:

> mainHeader.className;
'main-header'
> mainHeader.className = 'main-header warning-style';
'main-header warning-style'
> mainHeader.id;
''
> mainHeader.id = 'header1';
'header1'

.classList returns an array-like object of all the classes on the element and makes it easy to add or remove individual classes for the node. There are many useful methods available on classList.

A classList is a DOMTokenList type. Similarly to a NodeList, A DOMTokenList is an array-like object with a numerical zero-based index, a length property, and several methods like .contains() and .forEach().

Most notably, the methods .add(), .remove(), and .toggle() are very useful. Toggle will add the class if it does not exist and remove it if it does. Very helpful in some common cases!

These methods take a single string representing the class:

> mainHeader.className;
'main-header'
> mainHeader.classList.add('bold-header');
> mainHeader.classList;
DOMTokenList(2) ['main-header', 'bold-header', value: 'main-header bold-header']
> mainHeader.className;
'main-header bold-header'
> mainHeader.classList.remove('main-header');
> mainHeader.className;
'bold-header'
> mainHeader.classList.toggle('highlight');
> mainHeader.className;
'bold-header highlight'
> mainHeader.classList.toggle('highlight');
> mainHeader.className;
'bold-header'

const changePalette = () => {
  colorBars.forEach((bar, index) => {
    bar.textContent = palette[index*2];
    bar.title = palette[index*2] + "- #" + palette[index*2 + 1];
    bar.style.backgroundColor = "#" + palette[index*2 + 1];
    bar.id = palette[index*2 + 1];
})};

.dark-theme {
   background-color: black;
   color: white;
}

const toggleTheme = () => {
  document.querySelector('body').classList.toggle('dark-theme');
};

Accessing the children and the parent nodes with .parentNode and .children

The .parentNode and .children properties are used to access relatives of the element, so you can effectively traverse the document tree up and down. In practice, using these properties is like making a new selection. You would then access some other property of the selection to perform an update.

These properties are read-only.

Again, let's use the HTML below:

<header>
  <h1 class="main-header">Dom Manipulation</h1>
  <nav class="main-nav">
    <a href="#" class="nav-item">Home</a>
    <a href="#" class="nav-item">About</a>
    <a href="#" class="nav-item">Blog</a>
    <a href="#" class="nav-item">Contact</a>
  </nav>
</header>

And select a new node to test the properties:

> const navNode = document.querySelector('.main-vav');
// returns an HTMLCollection of all the children of that node
> navNode.children;
HTMLCollection(4) [a.nav-item, a.nav-item, a.nav-item, a.nav-item]
// returns the parent node of the node
> navNode.parentNode;
<header>...</header>

// temporary code
const containerNode = document.querySelector('.container');
console.log('These are the children of the flex container:');
console.log(containerNode.children);
console.log('And this is the parent, with all the siblings:');
console.log(containerNode.parentNode);

Conclusion

Manipulating nodes is at the core of a dynamic application! Styles, attributes, classes and IDs can be easily changed by directly accessing the properties of a node.

As long as you design a minimal and flexible HTML/CSS structure, there's no need to make important hard-coded decisions early on. You are free to change elements as you code the application, focused on JavaScript.

For instance, if you assign IDs to nodes that are supposed to be manipulated inside your application, it all comes down to making a simple selection and accessing some properties.

The classList array-like object is particularly useful when you create classes (including complex ones) in the CSS stylesheet, saving you a lot of time and code in the application implementation.

Adding New Elements to the DOM

In a dynamic application, you will often need to create elements which were not originally hard-coded in the HTML.

A typical scenario is to add elements based on user interaction, like displaying a warning pop-up or expanding an element to show more text. Since you need to be conscious about the page's "real estate", cluttering and ease of use, and you never know how the user will interact with the application, a lot of the elements may be created on the fly, instead of being hard-coded in the HTML.

Creating elements programmatically usually translates to more responsive and flexible applications!

In this Core Competency, you will learn how to create elements and attach them to the DOM using different approaches. As you will see, any type of element can be created and inserted anywhere in the document.

Creating DOM elements with .createElement()

The .createElement() method will generate a new element in memory, meaning it won't be attached to the DOM until you explicitly add it to the document. You will be able to style the new element and insert it to the page only when you are ready.

The argument to this method is the tag name (e.g., h1, p):

const newHeader = document.createElement('h1');

The code above will create an h1 element in memory. Don't forget to assign the new element to a reference, otherwise you won't be able to later manipulate it and attach it to the DOM.

If you log the new node in the console, you will get an empty h1 element:

> newHeader;
<h1></h1>

// Get company name on page load
const clientName = window.prompt("Welcome to Kolors! Please enter your company's name:");

// Create welcome message header
const welcomeMsg = document.createElement('h2');

// Create dark mode toggle button
const toggleBtn = document.createElement('button');

Building out a new element

With the newHeader in memory, you can manipulate it just like any other existing element in the DOM.

You could add text and some styling with:

newHeader.textContent = "I'm a fresh H1 header!";
newHeader.style.color = "yellow";

And log the resulting node to verify:

> newHeader;
<h1 style="color: yellow;">I'm a fresh H1 header!</h1>

welcomeMsg.textContent = 'Welcome ' + clientName + ', we are excited to help you choose the perfect palette!\nUse the button to shuffle through some beautiful color combinations.';
welcomeMsg.style.border = '1px solid grey';
welcomeMsg.style.padding = '0.5em';

toggleBtn.textContent = 'Dark Theme OFF';
toggleBtn.id = 'togglebtn';

Adding children with .appendChild() and .prepend()

You're now ready to make your newly created elements show up on the page! All elements created in memory will be inserted (or attached) to some existing element in the document, as a child.

You first select the parent node and then use either its .appendChild() or .prepend() methods to attach the child. Calling one of these methods will add your element into the DOM.

Let's use the HTML below as an example:

<header>
  <h1 class="main-header">Dom Manipulation</h1>
  <nav class="main-nav">
    <a href="#" class="nav-item">Home</a>
    <a href="#" class="nav-item">About</a>
    <a href="#" class="nav-item">Blog</a>
    <a href="#" class="nav-item">Contact</a>
  </nav>
</header>

By using .appendChild(), you can add a new element under the selected element after all of the existing children:

> document.querySelector('header').appendChild(newHeader);

You effectively added the new h1 node to the end of the header section, as the last child, after the nav section. The resulting HTML structure in the DOM (not in the original HTML file!) will be:

<header>
  <h1 class="main-header">Dom Manipulation</h1>
  <nav class="main-nav">
    <a href="#" class="nav-item">Home</a>
    <a href="#" class="nav-item">About</a>
    <a href="#" class="nav-item">Blog</a>
    <a href="#" class="nav-item">Contact</a>
  </nav>
  <h1 style="color: yellow;">I'm a fresh H1 header!</h1>
</header>

And by using .prepend(), you can add the element before all the other existing child elements:

> document.querySelector('header').prepend(newHeader);

You would get the new h1 element as the first child inside the header parent:

<header>
  <h1 style="color: yellow;">I'm a fresh H1 header!</h1>
  <h1 class="main-header">Dom Manipulation</h1>
  <nav class="main-nav">
    <a href="#" class="nav-item">Home</a>
    <a href="#" class="nav-item">About</a>
    <a href="#" class="nav-item">Blog</a>
    <a href="#" class="nav-item">Contact</a>
  </nav>
</header>

<body>
  <h1>Kolors Palette Selector</h1>
  <button type="button" id="palettebtn">Change Palette</button>
  <div class="container">
    <div class="rectangle"></div>
    <div class="rectangle"></div>
    <div class="rectangle"></div>
    <div class="rectangle"></div>
    <div class="rectangle"></div>
  </div>
</body>

document.querySelector('body').prepend(welcomeMsg);
document.querySelector('body').appendChild(toggleBtn);

Adding elements to the DOM with .insertAdjacentElement()

The .insertAdjacentElement() method is more flexible than .appendChild() or .prepend(), and it allows you to choose other positions to insert new elements. This method takes two arguments:

targetElement.insertAdjacentElement(position, element);

Where position is a string representing the position relative to the target element. The options for position are:

• 'beforebegin' - just before the target element, as a sibling
• 'afterbegin' - similar to prepend(), as the first child inside the target element
• 'beforeend' - similar to appendChild(), as the last child inside the target element
• 'afterend' - just after the target element, as a sibling

Say you want to target an existing element in the page. The placement works like this:

<body>
  <!-- beforebegin -->
  <p>
    <!-- afterbegin -->
    Existing text (or element) inside the paragraph
    <!-- beforeend -->
  </p>
  <!-- afterend -->
</body>

Let's look at a practical example. Say you have this HTML structure for a color palette app:

How to Build It

Here's the HTML structure:

<div class="container">
  <h1>Color Palette Generator</h1>
  <div class="palette">
    <div class="color" style="background-color: #FF5733">#FF5733</div>
    <div class="color" style="background-color: #33FF57">#33FF57</div>
    <div class="color" style="background-color: #3357FF">#3357FF</div>
  </div>
  <button id="palettebtn">Generate New Palette</button>
</div>

And here's how you would modify the JavaScript to place elements in specific positions:

document.querySelector('h1').insertAdjacentElement('afterend', welcomeMsg);
document.querySelector('#palettebtn').insertAdjacentElement('beforebegin', toggleBtn);

This code will:

• Place the welcome message right after the h1 heading
• Place the toggle button right before the "Generate New Palette" button

You haven't implemented the button behavior yet, and of course you only have one palette for now. But this is how the page looks like at this point:

Conclusion

In this module, you learned about the Document Object Model (DOM) and how to manipulate it using JavaScript. You explored DOM structure, selecting elements, and modifying content. You also learned about different methods for inserting and positioning elements within the DOM tree.

Key takeaways:

• The DOM represents HTML documents as a tree structure of objects
• Elements can be selected using methods like querySelector() and querySelectorAll()
• DOM elements can be created, modified, and removed dynamically
• Elements can be inserted at specific positions using insertAdjacentElement()

With these fundamentals, you're now equipped to create more dynamic and interactive web applications by manipulating the DOM effectively.

Guided Project

DOM I Starter Code

DOM I Solution

Module 1 Project: The DOM

You will develop a JavaScript project that involves creating widgets for a webpage. The project will require you to manipulate the DOM using JavaScript by adding CSS classes to HTML elements, loading random content from arrays, dynamically creating and appending HTML elements, and more. The variety of tasks you will encounter here mimics the tasks you will get on the job.

The module project contains advanced problems that will challenge and stretch your understanding of the module's content. The project has built-in tests for you to check your work, and the solution video is available in case you need help or want to see how we solved each challenge, but remember, there is always more than one way to solve a problem. Before reviewing the solution video, be sure to attempt the project and try solving the challenges yourself.

Instructions

The link below takes you to Bloom's code repository of the assignment. You'll need to fork the repo to your own GitHub account, and clone it down to your computer:

Starter Repo: The DOM

• Fork the repository,
• clone it to your machine, and
• open the README.md file in VSCode, where you will find instructions on completing this Project.
• submit your completed project to the BloomTech Portal

Solution
